Beskar™ Ingot Drive  Installation Guide
Beskar™ Ingot Drive

Was this content helpful?


Install Beskar™ Ingot Drive

  1. Before installing Beskar™ Ingot Drive, power down your computer and unplug any cables attached to it.
  2. Open the case or cabinet.
  3. If an existing SSD drive is installed in the M.2 PCIe slot you intend to use for Beskar™ Ingot Drive, you'll need to remove it.
  4. Power on your computer.
  5. Access the BIOS setup while the computer is booting. Ensure that a PCIe device is set in the BIOS boot sequence or boot priority list.
  6. Power down the computer and locate the M.2 PCIe slot on your motherboard.

Note—Some motherboards have a pad installed in the M.2_PAD space by default. This pad can be removed to ensure a better fit for Beskar™ Ingot Drive.

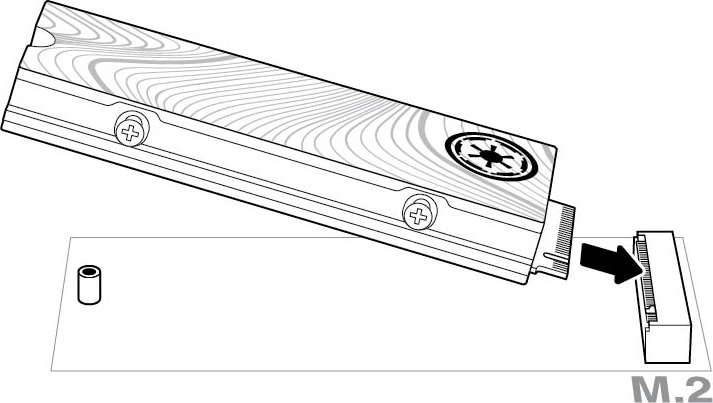

  1. Check to make sure that the notch on Beskar™ Ingot Drive is correctly aligned with the divider in the slot. Gently push the SSD into the slot until it's firmly seated.

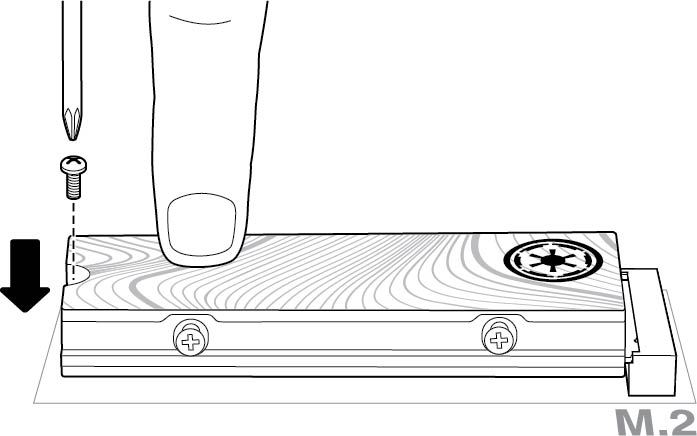

  1. Hold down Beskar™ Ingot Drive while you fasten the mounting screw. Make sure the SSD is secured in place.

  1. Close the case or cabinet and reassemble your computer.
  2. Power on your computer.
  3. Install the computer operating system on Beskar™ Ingot Drive if you want to use it as the primary drive.
