Lyve Mobile Mount and PCIe Adapter - Front Loader User Manual
Lyve Mobile Mount and PCIe Adapter - Front Loader

Was this content helpful?

Part List

ImageNameQuantityNotes
Lyve Mobile Mount 1
PCIe Adapter 1
Locking bracket 1

Shoulder screw 8 mm x M6-1.0 x 47 + L13, HEAD (16.0,6.3)

1



M3-0.5 x L16 (5.8,1.0), phillips screw

6 For horizontal installation of two Lyve Mobile Mounts

M3-0.5 x L7 (5.8,1.0),
phillips screw

10 For vertical installation of two Lyve Mobile Mounts

M6-0.1 x L20 (10.0,6), hex socket cap screw

6 Shelf installation
Power adapter 1

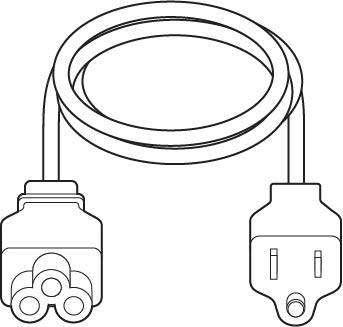

Power cord US 1
Power cord UK 1
Power cord EU 1
Power cord AU/NZ 1
Cable holder cover 5
SFF-8644 cable 1
