Lyve Mobile Rackmount Receiver User Manual
Lyve Mobile Rackmount Receiver

Was this content helpful?

Rackmount Kit

Parts list

PackageImageNameQuantityNotes

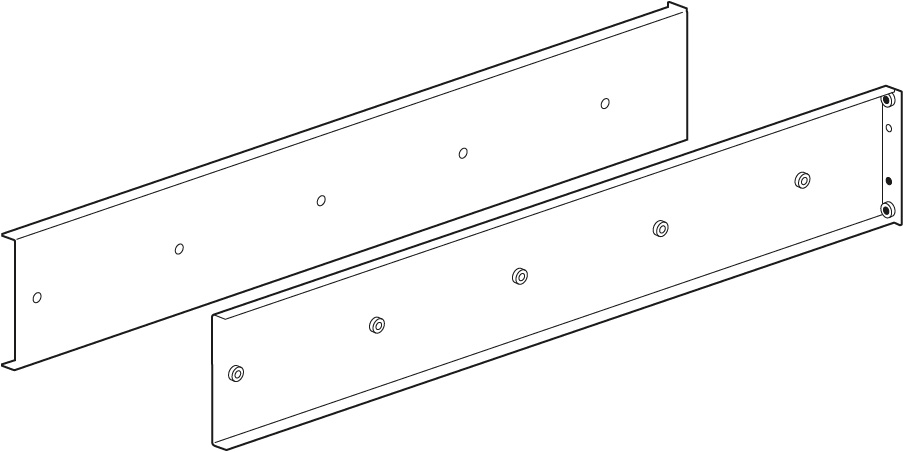

    Back rails 2
  Front rails (left and right) 1 left
1 right

A M4 pin for 7.1mm hole" hole 4 M4 x L10 (6.8,2.5) Phillips screw
B M4 pin for .375" hole 4

M4 x L10 (9.1,2.5) Phillips screw

C M4 nut 4
D   10-32 cage nut 4
E 10-32 flat head screw 8 10-32 x L12.7 Phillips screw
F Stepped washer 8
G M4 pan head screw 4 M4 x L8 Phillips screw
H 10-32 pan head screw 4 10-32 x L25.4 Phillips screw
I Flat washer 4

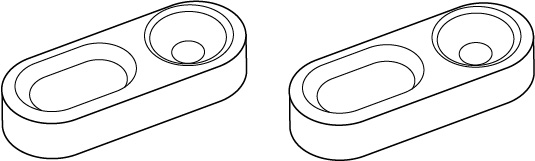

J Latch 2
K 10-32 nut and washer 2 (each)

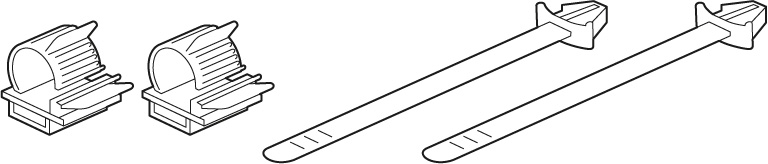

  Zip ties 2

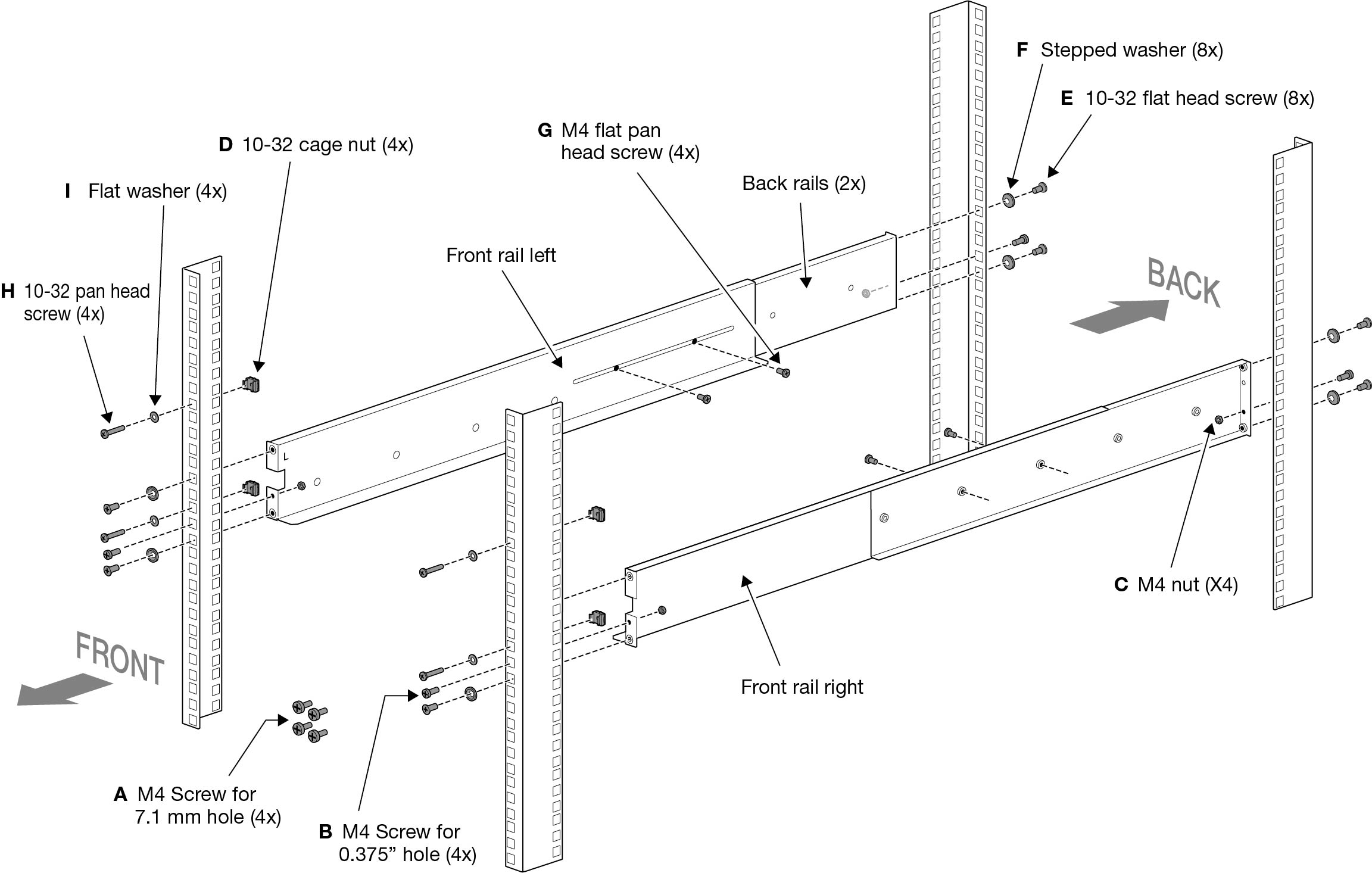

Parts diagram

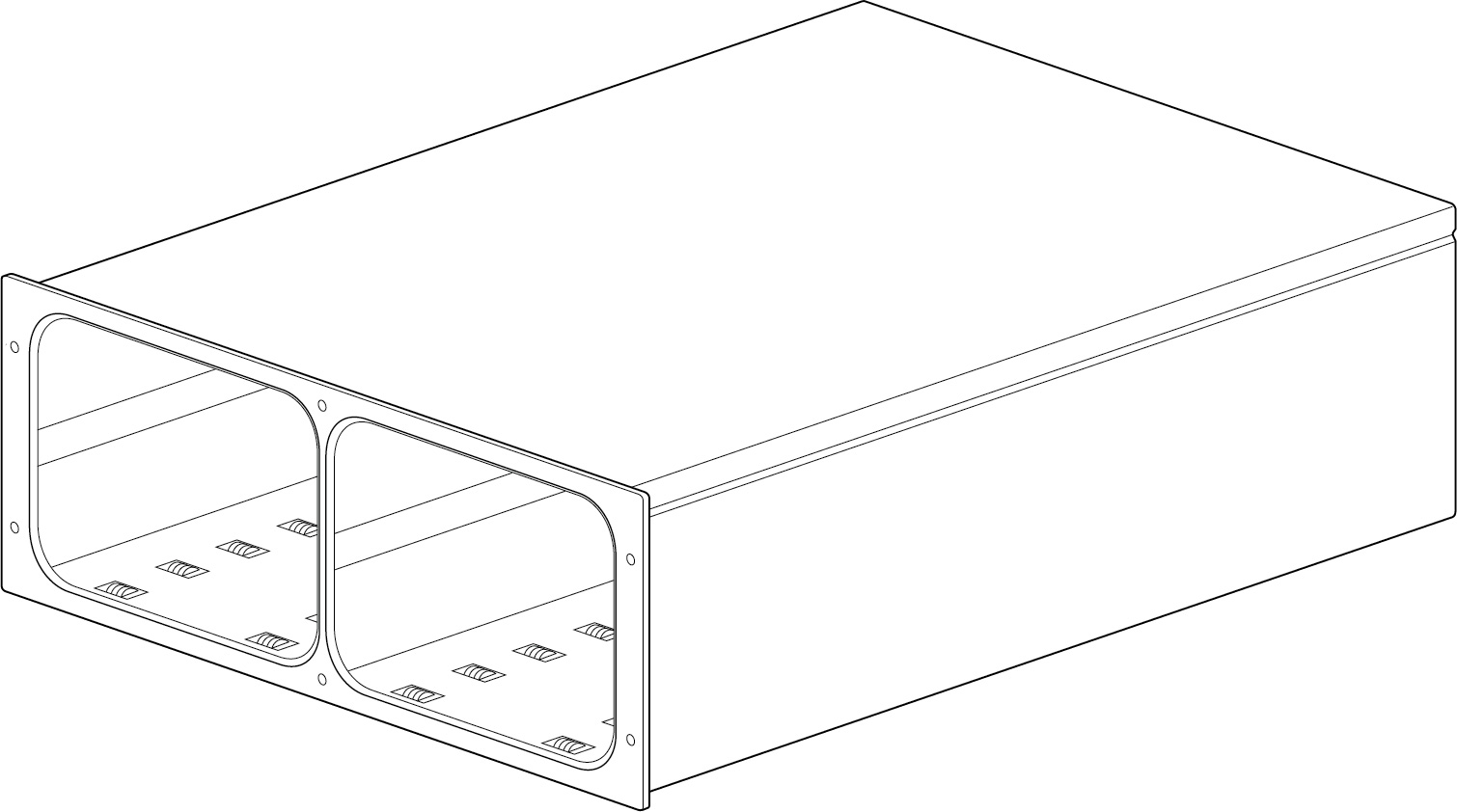

Lyve Mobile Rackmount Receiver

Removing Lyve Mobile Rackmount Receiver from its packaging and carrying the unit must be performed by at least two people.

Receiver weight (empty): 47.52 lb/21.6 kg

Do not attempt to lift or assemble Lyve Mobile Rackmount Receiver with compatible devices inserted.
