Cabling - an overview

This article discusses the cable interfaces available on every kind of Seagate and Maxtor-brand external hard drive, the environment in which it is best to use each, and instructions for each connection.

Click on a category below to be taken to the relevant section and illustrative graphics.
See Document ID: 214431 for cabling information about FreeAgent GoFlex drives.

External drivesInternal drivesNetwork drives
USB 2.0Serial ATA (SATA)Ethernet
USB 3.0(Parallel) ATA (PATA)
FireWire 400M.2
FireWire 800U.2 (SFF-8639)
eSATA
Powered eSATA
Thunderbolt



External drives

USB 2.0

USB is the most common connection type for external devices, whether external hard drive, thumb drives, flash drives, printers, cameras, all kinds of other devices.  It is extremely easy to use. Whether the computer is powered on or powered off, simply connect the cable to your device and it should be ready to be used less than 30 seconds later (depending on your computer's speed).

(Click to expand)

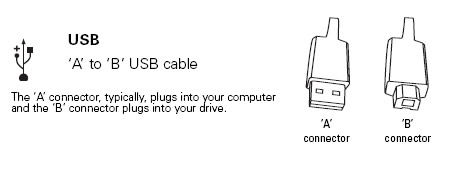

The USB cable has two ends - one to connect into the drive, and one to connect into the computer.  See in this image the 'A' connector, which will fit into a corresponding rectangular port on your computer.  Sometimes these ports are found both on the front and the rear of your computer.  Usually it is OK to connect the drive either to the front or to the rear, though if trouble occurs, it is best to connect it to the port on the rear.

The USB symbol is usually found near the ports on the computer.

(Click to expand)
Most USB cables that come with Seagate and Maxtor-brand drives look like this. Note that the connection size for the connector on the drive is smaller than, for example, a USB port on a printer, but many digital cameras use the same size connection.

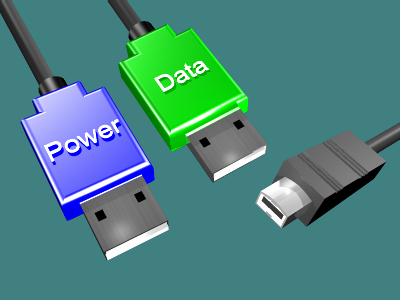

Certain Seagate and Maxtor-brand drives are powered only by USB, so they do not have a separate power cord.  They usually draw enough power from one USB connection, though sometimes plugging both of the cables in will be necessary, or plugging the one cable into a powered USB hub.  These drives are named and linked here, with a picture of their cables.

(Click to expand)
Seagate FreeAgentGo

(Click to expand)
Maxtor OneTouch 4 mini and OneTouch III mini

(Click to expand)
Seagate Portable Drive



USB 3.0

USB 3.0 is another generation of USB. In computers where all the devices and drivers are compatible with USB 3.0 peak performance, it provides significantly better performance than USB 2.0.

It is also backwards-compatible with USB 2.0, so a USB 3.0 device and cable is compatible with a computer that only has USB 2.0 ports. It is extremely easy to use. Whether the computer is powered on or powered off, simply connect the cable to your device and it should be ready to be used less than 30 seconds later (depending on your computer's speed).

The USB 3.0 cable has two ends - one to connect into the drive, and one to connect into the computer. The connection into the drive is not the same as USB 2.0, but the connector into the computer is compatible with USB 2.0, while retaining its own special attributes. Sometimes these ports are found both on the front and the rear of your computer. Usually it is OK to connect the drive either to the front or to the rear, though if trouble occurs, it is best to connect it to the port on the rear.

The USB symbol is usually found near the ports on the computer.


FireWire 400 and 800



FireWire is a similar connection to USB, in that it is plug-and-play.  Simply connect your device to the computer and it will usually be ready to be used within 30 seconds.  FireWire is much more common in Mac computers than in Windows computers.

FireWire comes in two speeds - FireWire 400 and FireWire 800.  FireWire 400 (also known as 1394a) usually gives performance similar to USB 2.0.  FireWire 800 (1394b) is significantly faster, giving performance similar to an internal Serial ATA drive, and is almost exclusively available in Mac computers.

(Click to expand)

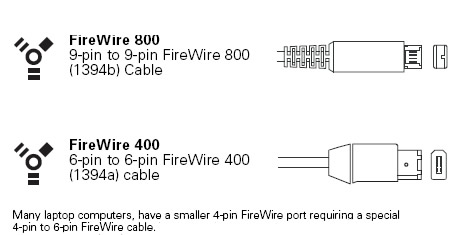

See here a graphic of the two different kinds of FireWire cables and ports.

(Click to expand)
See here a close-up graphic of a typical FireWire 400 port.


eSATA

eSATA (external Serial ATA) is a high-performance interface most commonly found in Windows PCs, but is fairly rare.

Seagate products that have this connection are:  FreeAgent XTreme, FreeAgent Pro (classic), and the Seagate eSATA drive.

(Click to expand)

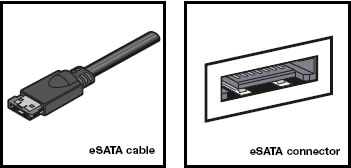

See here a graphic of the eSATA cable and the port.  Please note that the cable's connector and the port look similar to that of a normal Serial ATA connector and port, but they are not intercompatible due to small physical differences.


Powered eSATA

Powered eSATA provides high performance like eSATA, but like USB 2.0 it also provides electrical power to operate a drive without needing to use a separate power cable for the drive. This interface is even more rare than eSATA. One of the types of FreeAgent GoFlex upgrade cables, which is compatible with the FreeAgent GoFlex and GoFlex Pro, uses the Powered eSATA interface.

See here a graphic of the upgrade cable.


Thunderbolt

User-added image



Seagate’s Thunderbolt adapter for Backup Plus and GoFlex drives allows some Backup Plus, Backup Plus for Mac, GoFlex, GoFlex Pro, GoFlex Slim, GoFlex Turbo, GoFlex for Mac, GoFlex Slim for Mac, or GoFlex Pro for Mac drives to connect via Apple’s Thunderbolt port on a Apple or Windows computer.
For Windows computers, additional drivers are required for the Seagate Thunderbolt adapter as well as for the Thunderbolt port on the motherboard (available from the computer or motherboard manufacturer).
For MacOS, please find information about Thunderbolt at the following Apple support article:

Introducing Thunderbolt


Internal drives

Serial ATA (SATA)

Serial ATA is the most common connection for internal drives in modern PCs and Macs.  There can be multiple SATA ports on any one motherboard or controller card.  One cable connects one hard drive to one port on the motherboard (as opposed to Parallel ATA).

(Click to expand)

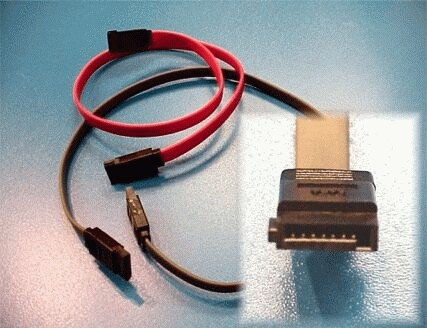

See here an image of a red SATA cable and a black SATA cable, as well as a head-on view of the SATA connector.

(Click to expand)
See here a drawing of the back of a SATA hard drive, with the data cable and the power cable connecting into it.

Some SATA drives include a small power adapter that plugs in to the normal power cable inside an older PC or Mac so that it will fit the SATA drive.
(Click to expand)

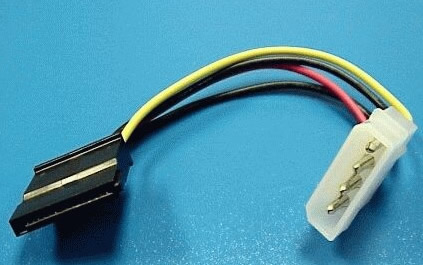

See here an image of that power cable adapter.

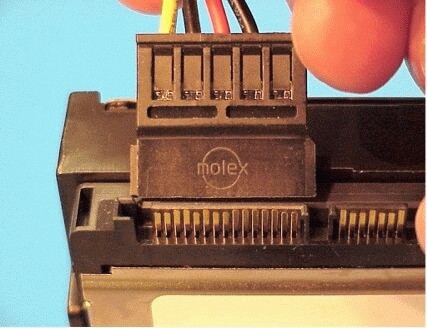

See here a close-up illustration of the adapter fitting into its power connector on the SATA drive.


(Parallel) ATA

ATA is a very common connection for internal drives in older PCs and older desktop Macs (before G5), and for devices like CD and DVD drives in modern PCs and Macs.  It is a connector about 2 inches (5 cm) wide and has 40 small gold pins that will fit into the corresponding 40 small holes on its corresponding connector.
There can be two or four ATA ports on any one motherboard.  One cable can connect to two devices at the same time.

(Click to expand)

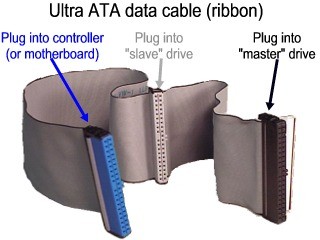

See here an image of a normal ATA cable.

Blue connector - always connects to the motherboard.

Grey (middle) connector - is used for slave devices on the cable.

Black connector - is used for master device connection.

An ATA hard drive will also have different jumper settings depending on whether it is connected as slave or master.

Note that older ATA cables exist, but a hard drive requires the 80-conductor cable, as seen here:

(Click to expand)

(Click to expand)

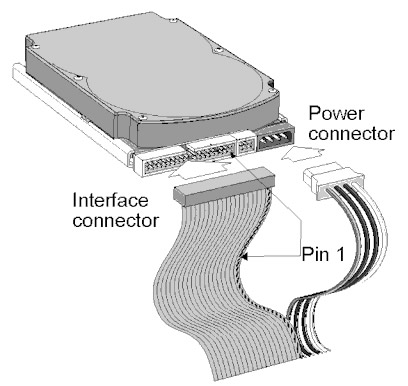

Finally, see here an image of the ATA cable and the power cable connecting into the back of an ATA drive.

An ATA hard drive that is connected to the same cable as a CD or DVD drive must be connected to the master position, with the CD or DVD drive in the slave position.

M.2

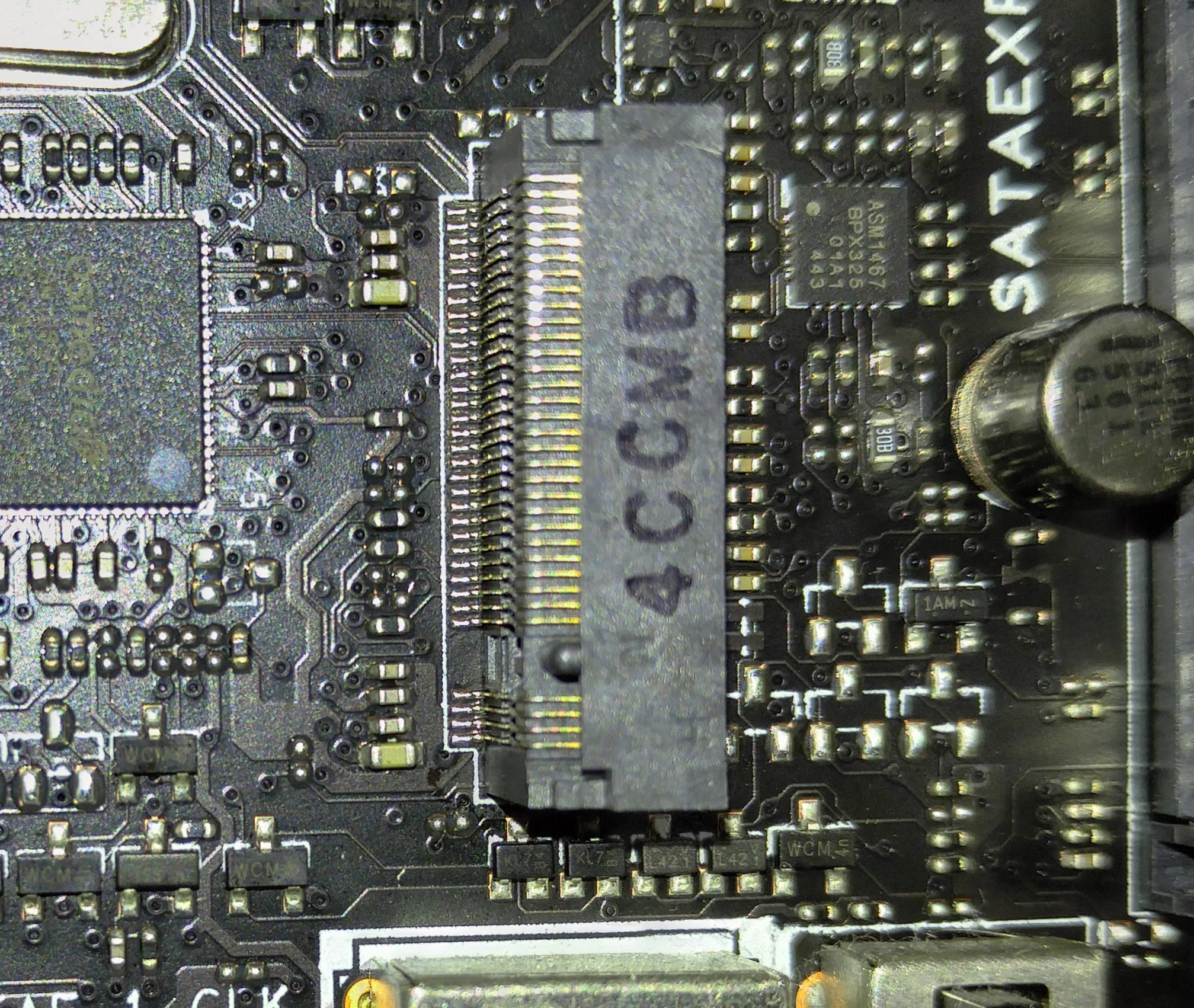

The M.2 connector is designed for small form factor devices, so you will mostly see it inside of tablets and laptops.  This connector supports both wireless cards and SSDs, as well as NVMe commands.

           User-added image

U.2 (SFF-8639)

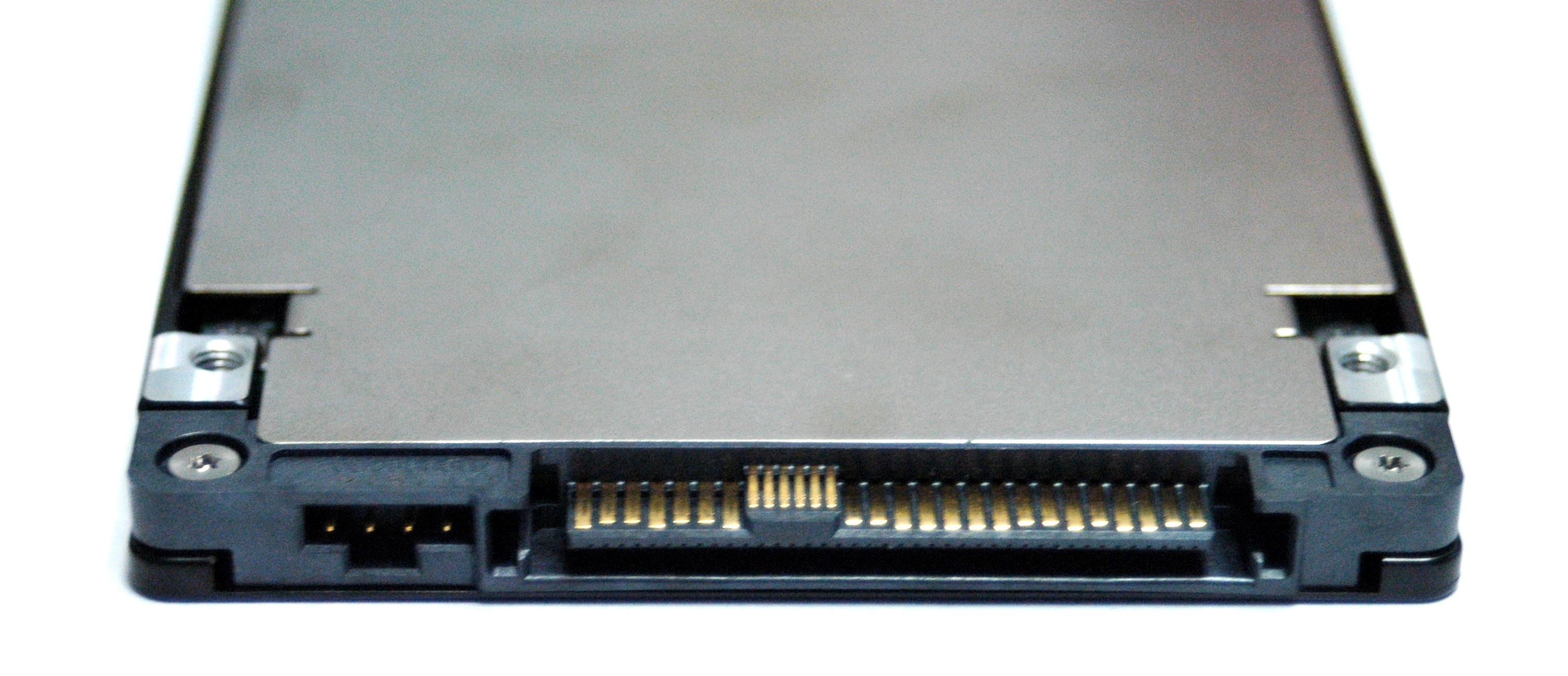

The SFF-8639 connector was renamed to a more consumer friendly U.2.  This connector is used with some new NVMe SSDs.  U.2 utilizes 4 PCIe 3.0 lanes to provide speeds much faster than the SATA interface.  Since most motherboards do not have a U.2 connector on them, a M.2 to U.2, or PCIe to U.2 adapter can be used.

User-added image

Network drives

Ethernet

Ethernet is the same connection type that your computer uses to connect to its Internet device (cable or DSL modem, etc).

(Click to expand)

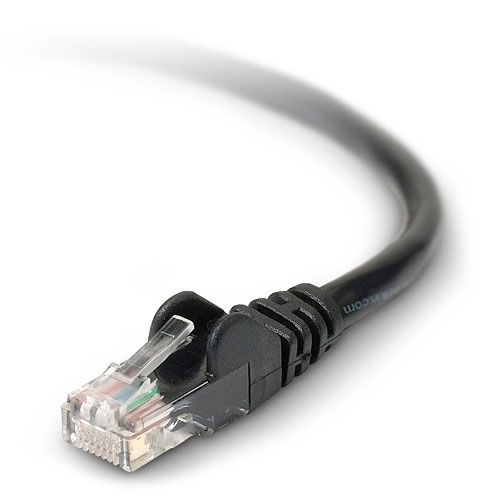

See here an image of the Ethernet cable.

(Click to expand)
See here an outline of the port into which the cable connects.
