This article is for informational purposes only and no longer being updated by Seagate.

DiamondMax D540X Ultra ATA 100/133 - Jumper, CHS, and Install Guide

Overview and details for DiamondMax D540X UltraATA 100/133 drives, including model numbers and specifications.

This FAQ applies to Maxtor model numbers: 4D080H4, 4D060H3, 4D040H2, 4K080H4, 4K060H3, 4K040H2, 4G120J6, and 4G160J8.

These model numbers may also be designated as either D540X-4D, D540X-4K, or D540X-4G on your hard drive. Drive models with the "4D" and "4K" suffix support Ultra ATA 100 transfers and units with the "4G" suffix are newer models supporting Ultra ATA 133. All other specifications for these units are identical, the only difference being the place of manufacture and the jumper setting configurations. Please refer to the diagrams below for the settings for your particular model.

Key Features:

  • Maximum Capacity of 160.0 GB
  • Fast ATA/Enhanced IDE compatible
  • Data Protection System
  • Shock Protection System
  • Ultra ATA/100 Data Transfer Rate
  • 2 MB SDRAM Cache Buffer
  • < 12 ms average seek time

Check out our Installation Guide (PDF format) for detailed step by step instructions.

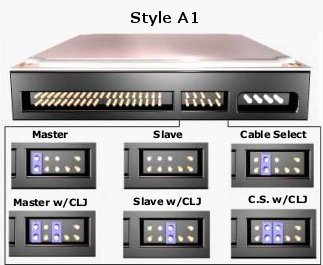

Use the diagram below if your drive model is the D540X (4G) (4G120J6, 4G160J8), or the D540X-4D (4D080H4, 4D060H3, 4D040H2)

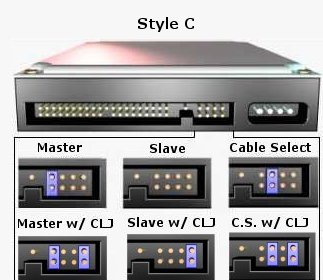

Use the diagram below if your drive model is the D540X-4K (4K080H4, 4K060H3, 4K040H2).

Master, Slave, or Cable Select - Which jumper settings should I use?

Under most conditions the standard Master or Slave setting should work just fine. Seagate and Maxtor ATA drives ship directly from the factory configured as a Master device. If the drive is going to be installed as the only device on the ribbon cable, or is going to be installed as the boot drive, then the default Master setting can probably be used without any problems. Just keep in mind that the Master device should always be attached to the end (black) connector on the Ultra ATA (UDMA) ribbon cable (this cable is supplied with your retail box).

If the drive is going to be installed as a secondary device to another hard drive, then use the Slave setting outlined in the jumper diagram. A Slave device should always be attached to the middle (gray) connector on the ribbon cable.

Note: Hard drives should never be configured as a Slave device to a CD-ROM or DVD drive.

Cable Select
Cable Select (CS) is an alternative - plug and play - method for configuring ATA or ATAPI devices. In this configuration both the master and slave drives utilize the same jumper configuration (that is, both devices are set to Cable Select). The drive's master or slave status will be determined by which connector the drive is attached to on the cable (black connector for master, gray connector for slave). Many ATAPI devices such as CD-ROM and DVD drives, or ATA hard drives from other manufacturers, may come pre-configured as Cable Select. This option should be taken into consideration when installing a new ATA drive with any existing ATAPI or ATA devices that may employ Cable Select as their default setting.

Note: To use this option you must use the Ultra ATA ribbon cable supplied in your retail box.

Seagate recommends that you use the Auto-Detect Feature in the BIOS for hard drive configuration.

If your BIOS does not utilize Auto-Detect, Seagate recommends that you:

  • Manually enter the Maximum Cylinder value for the hard drive if greater than 8.4 GB.
  • Manually enter the Actual Cylinder value for the hard drive if less than 8.4 GB.
CHS Values and Capacity
Model Number**Actual CylsMax
4G160J6317,63216,3831663160.0 GB
4G120J6238,21616,3831663120.0 GB
4D080H4158,11616,383166380.0 GB
4D060H3119,15016,383166360.0 GB
4D040H2116,30116,383166340.0 GB
4K080H4158,11616,383166380.0 GB
4K060H3119,15016,383166360.0 GB
4K040H2116,30116,383166340.0 GB

NEVER enter more than 16,383 cylinders in the system BIOS.
This may potentially cause data loss.

See Document ID: 194563 for information regarding Binary and Decimal calculations.

Cable Requirements: An 80-Wire UDMA Interface Cable is REQUIRED for all UDMA/66/100/133 hard drives. It is recommended for all UDMA/33 hard drives.

Please Note: Model Number Naming Conventions have changed with the release of the DiamondMax Plus 60 series. This numbering convention will remain in existence for future Hard Drive products. For example, the Model Number 5T060H6 is a 60-gigabyte hard drive. Reference the Seagate web site for further information.

*GB = 1 billion bytes. Total accessible capacity varies depending on operating environment.
