This article is for informational purposes only and no longer being updated by Seagate.

NAS OS 2 - Setting up iSCSI on Windows

A guide on how to set up an iSCSI volume on a Lacie NAS OS 2 device, and then connect to it from a Windows computer.


Applicable devices:

  • 5big Network 2
  • 2big Network 2
  • d2 Network 2



1. Log on to your LaCie Network drive Dashboard, for example using the LaCie Network Assistant.

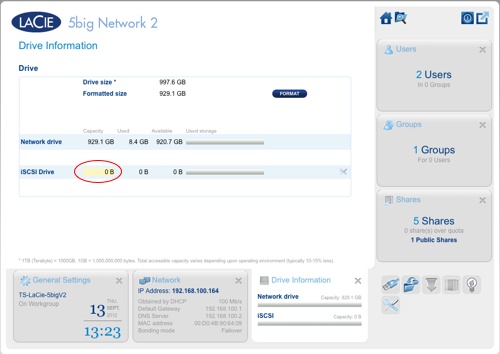

2. Once connected, click on Drive Information in the menu.

User-added image



3. By default the iSCSI drive size is set to 0 Bytes.  Click on the size, as shown below, to change the capacity of the iSCSI partition.

User-added image

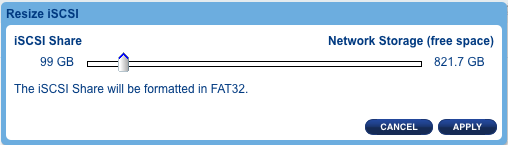

4. Move the slider to the right to increase the size.  It will only allow you to use free space on the drive to ensure no data is lost from any other shares.

User-added image



5. Once you hit Apply you can then change any advanced settings as needed.  By default you should not need to change any of the settings.

User-added image



6. From the Windows computer select the Start Menu and then Control Panel.  In the search box on the control panel type in "iSCSI".  Select "Set up iSCSI initiator" to start configuration.

User-added image



7. In the Quick Connect dialog type in the IP Address or name of your network drive.

User-added image



8. When you select Quick Connect it will attempt to connect to the drive and show the status.

User-added image

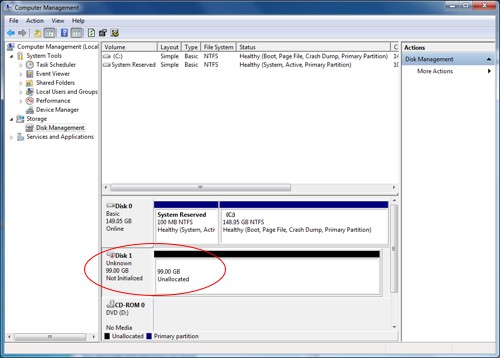

9. Once connected the drive will show in Disk Management like any other hard drive.  Partition and format the drive to start using it.

User-added image
